Main uses
This product is mainly used in chemical, pharmaceutical and other fields for solid-liquid separation of raw material intermediates and finished products.
Main features
?♦ All closed and clean structure, meets GMP standards and aseptic production requirements on medicines and foods.
?♦ Large flip cover faciliates washing drum and all parts in working area; quick-open type hydraulic lock structure is convenient and reliable for operation.
?♦ Dual shaft sealed structure can ensure that clean areas are not contaminated with lubricants and other contaminants
?♦ Adopts PLC control, touch screen operation, can realize man-machine conversation, convenient for operation and maintenance.
?♦ Actuating element adopts electricity-gas-hydraulic control. Overall process monitoring of on-line cleaning and online sterilization.
?♦ Adopts frequency converting control. Drum speed is stepless adjustable. Technology velocity can be set according to requirements.
?♦ Liquid damping vibration isolation device. No floating platform is required.
?♦ Gas reverse blowing device can effectively remove residual filter cake layer.
?♦ Online cleaning system.
?♦ All automatic online monitoring nitrogen protection system can ensure the centrifue works at positive pressure of inert gases. Online oxygen analyzer can be equipped with to realize anti-explosion requirements if necessary.
?♦ Online sterilization device can be equipped with to perform online sterilization in centrifugal cavity and pipeline.
?♦ Perfect multiple safety protection system, rotate speed monitoring, over vibration protection, open cap protection, overheating and overloading protection, main bearing temperature rise protection, oil cutting-off protection and other devices can ensure the safe operation of the centrifuge.
Configuration selection
?♦ Opening assistance: hydraulic, electric, and pneumatic
?♦ Motor drive: common motor, explosion-proof motor and variable frequency motor
?♦ Brake mode: energy consumption and feedback
?♦ On-line cleaning: Shower ball and shower pipe
?♦ Electrical components: Brand supply
?♦ Surface treatment: Mirror polishing, drawing, matting and passivating
?♦ Safety protection: nitrogen protection system, vibration protection, temperature protection, speed monitoring, overload protection and electromechanical interlocking
?♦ Nitrogen protection: automatic nitrogen charging device, oxygen content detection device, liquid seal device and gas-liquid separation device
?♦ Discharge method: slanting type and packing auger delivery
?♦ Vibration reduction: Rubber damping and liquid damping
Materials:
?♦ Stainless steel 304, 321, 316 and 316 L
?♦ Carbon steel or stainless steel coating PE, PP, HALAR (F30), PTFE (F4)

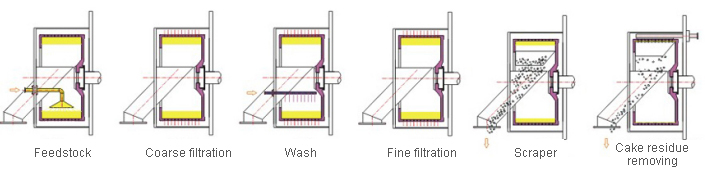

Working process
Bucket-inclined discharge

Auger delivery discharge
Technical parameters
